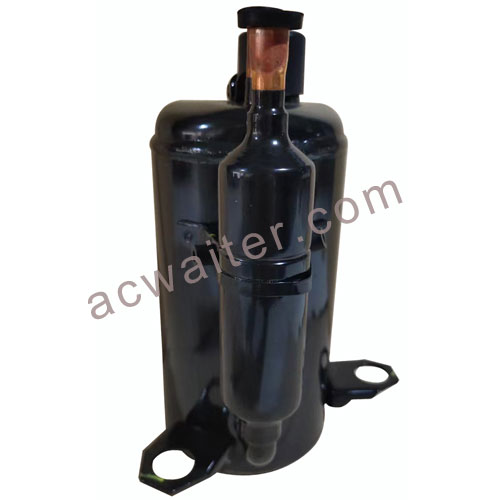

48-10152
    Publish time 2023-06-30 11:18
Displacment(cc/rev): 15
48-10152

Vertical/Horizontal: Vertical Displacment(cc/rev): 15;  VDC Power(v): 12&24 Driver Output(v): 24;   Refrigerant: R134a Speed range(rpm): 1000~4200 Rated speed(rpm): 3180 Rated current(A): 30 Rated motor input(W): 600 Rated capacity(W): 1940 Compressor height(Without assembly parts)(mm): 232 Compressor diameter (mm): Φ113.4 Accumulator diameter (mm): Φ63 Assembly radius a*b(mm): R75 Drive controller: Configurable
