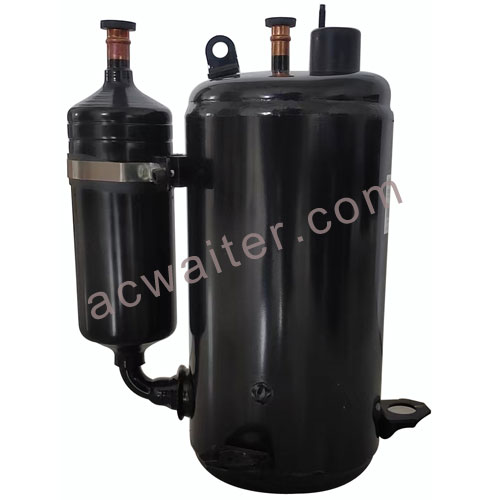

48-10151
    Publish time 2023-06-30 11:18
VDC Power(v): 24
48-10151

Vertical/Horizontal: Vertical Displacment(cc/rev): 11.0;  VDC Power(v): 24 Driver Output(v): 220;          Refrigerant: R134a Speed range(rpm): 1000~6000 Rated speed(rpm): 3000 Rated current(A): 2.37 Rated motor input(W): 370 Rated capacity(W): 1313 Compressor height(Without assembly parts)(mm): 208.2 Compressor diameter (mm): Φ113.4 Accumulator diameter (mm): Φ31.8 Assembly radius a*b(mm): R75 Drive controller: Configurable
