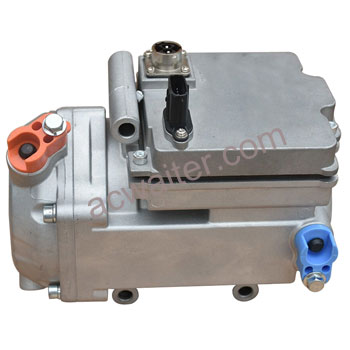

Model: Integral Type

       E Type

Compressor Type: Semi-closed Horizontal Scroll Compressor

Motor Type: Permanent magnet brushless DC motor

Controller Type: Integral Type

Inlet Port Inner Diameter/Seal: 18.3/O-Ring Radial Seal

Exhaust Port Inner Diameter/ Seal: 15.5/O-Ring Radial Seal

Executive Standard: JB/T 12845-2016

Working Temperature: -10C - 65C;  Storage Temperature: -40C - 85C

Refrigerant: R134a; Refrigeration Oil: R168H; Oil Injection measure: 130+-10ml

Installation Size: 82*85-M8; Specifications: 48-10089

Displacement: 26; Rated Voltage: 530; Voltage Range: 470-750

Rated Speed: 2700-3600;  Speed Range: 1000-5000; Power: 850-1800

Refrigerating Capacity(W): 2200<=(W)<=5000;   COP(W/W): 2.6<=(W/W)<=3.2
